Cement tankers according to European standards
TEKNİK BİLGİLER
For Eu countries Lider Trailer is the best for trailer and semi trailer manufacturing because we have sell to all Eu countries so we have get
to European Quality Certificate on all trailers .
Cement tanker is used in Eu with air suspensions system and lifting axles at the front and steering axle at the rear .
So we are ready for manufacture all types of Cement tankers according to Eu standards .
Our specifications for Cement Tankers with 45 ton capacity :
| TECHNICAL INFORMATION | TECHNICAL DATA | |
| Chassis : Aluminum extrusion profile frame, welded inside the support | Fifth Wheel Height (H) : | 1.200 mm |
| console (Welded Construction) | Tank Height : | 3.866 mm |
| Brake System : There is a dual-circuit electro-pneumatic braking system with | Tank Diameter (W) : | 2.500 mm |
| EBS 2S / 2M antiblocking system suitable for UN ECE R13 | Wheelbase (WB) : | 5.523 mm |
| Axle Brand : Equipped with LİDER branded 3 air suspension axles with | External Length (L) : | 10.362 mm |
| 12 ton permissible load capacity each | Volume : | 35,0 m³ |
| Electric System : SABA lightning installation with 24 V LED side position | Tare Weight ±%3 : | 7000 kg |
| lamp and 2x7 and 1x15- pin sockets, in compliance | Test Pressure (Bar) : | 3,5 bar |
| with Regulation UN ECE R48 and ADR Legislation | Operation Pressure (Bar) : | 3,0 bar |
| Number Of 1 Compartment | ||
| Compartments : | STANDARD ACCESSORIES | |
| Manhole Number : 2 x DN450 Pressure Type Domes | 1. 2 pieces single covered, manhole resistant. | |
| Discharge Type : Discharge type from the rear | to test pressure | |
| Hose Carrier : 2 x DN 200 size 5 m. for two hoses with rear cover | 2. 1 piece air pressure monometer | |
| Counterfort: They are “Lider” brand with double revolutions | 3. 1 piece safety valve adjusted to 3,0 bar | |
| mechanic pillars with 24 tons carriying capacity | 4. 1 piece ball jet air valve that accelerates | |
| Rear Bumper: 70/221/ AT version rear bumper | discharging. | |
| Batten: 1 unit parking batten with moving equipment | 5. 1 piece tool kit box (at the body). | |

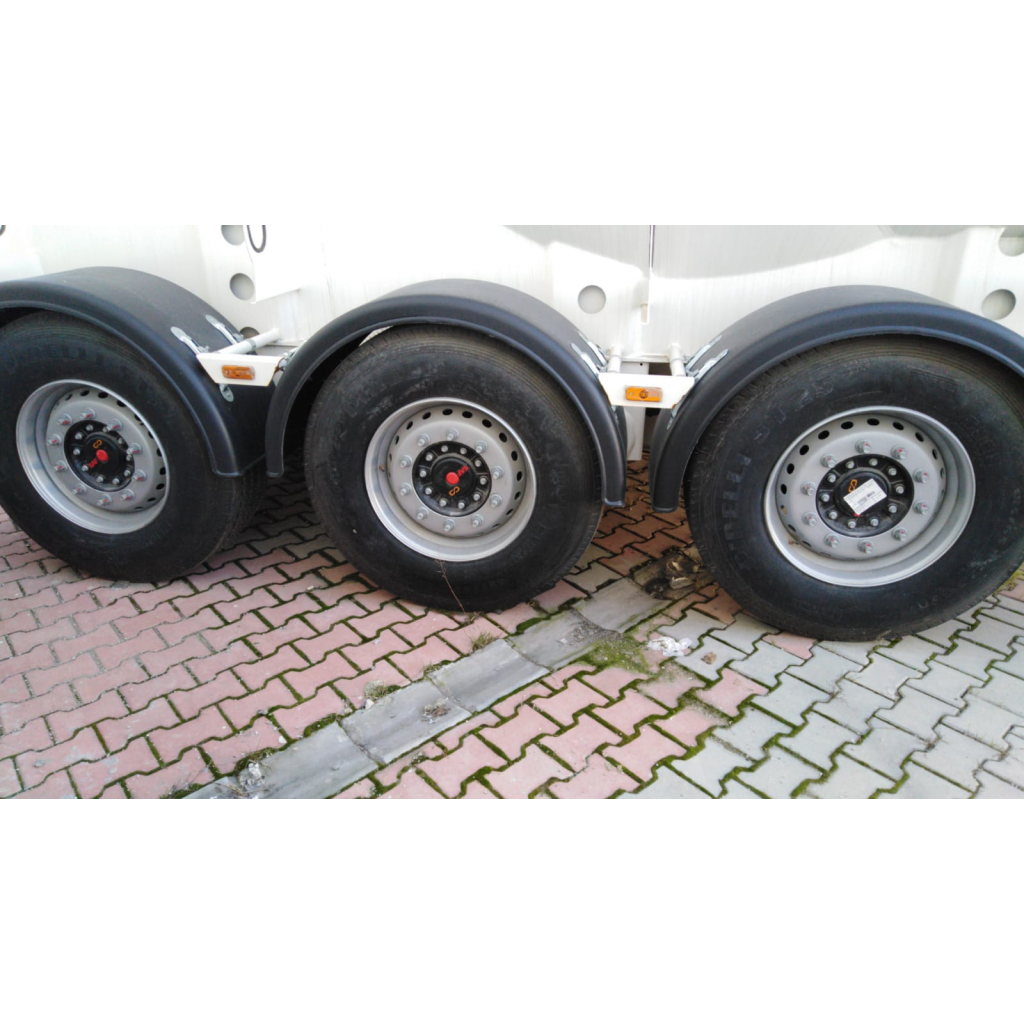

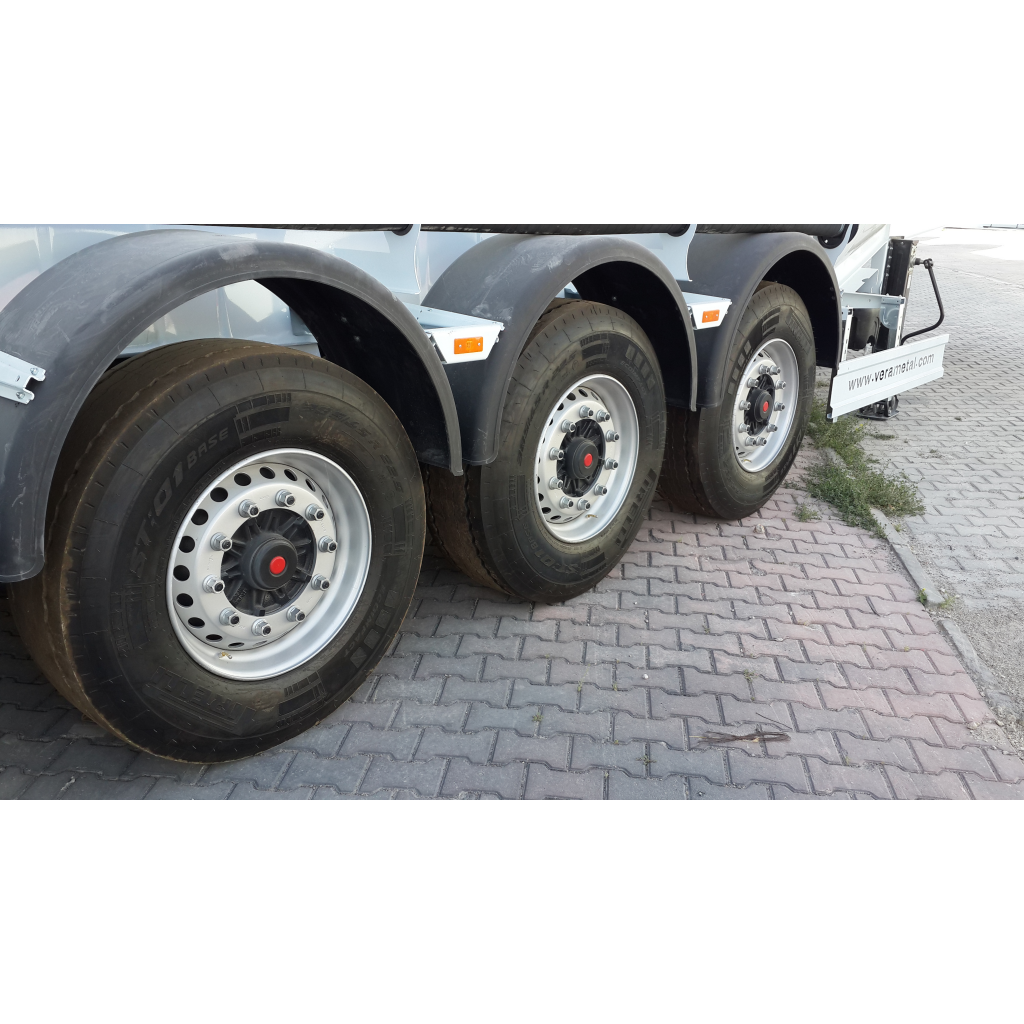

| Wheel and Rim : 385/65 R22,5 tyres 6 Units( Goodyear or Pirelli ) | 6. 1 piece nonskid ground walking platform. | |
| Mudguard : 2 unit complete mudguard | 7. 1 piece stair from rear existing. | |
| Spare Wheel : Single saddle type | 8. 2 pieces PVC carrier for discharging hoses. | |
| Cupboard: 1 unit cupboard | 9. 1 piece discharge valve box made of sheet | |
| Water Tank : 60 lt Cr–Ni water tank produced by stanless stell | ||
| Paint : Trailer clean before painting and repair with paste for | ||
| smooth face. Then prime paint and double last paint | ||
| regarding customer reguest in Paint Oven. | ||

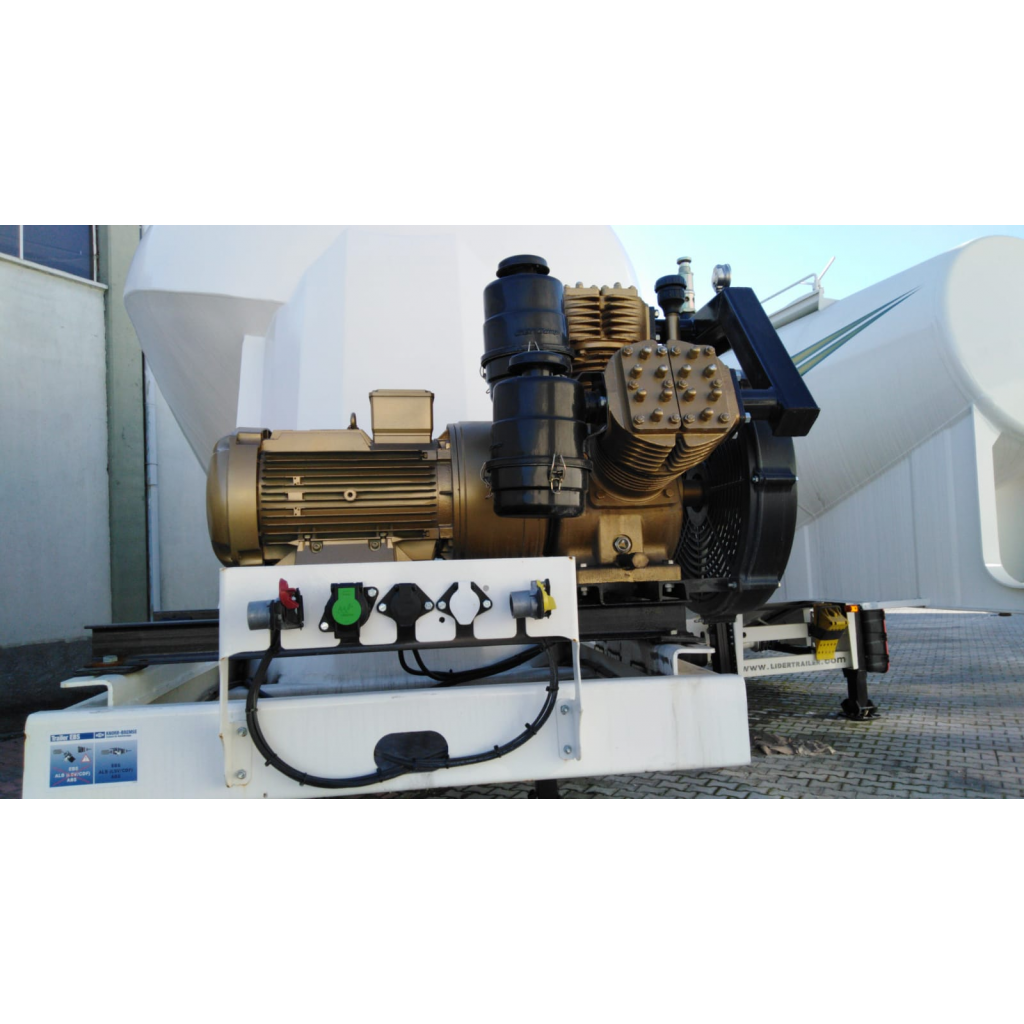

| Compressor: 3 heads, 8 m3 per minute, with flow rate, piston , Electric compressor | ||

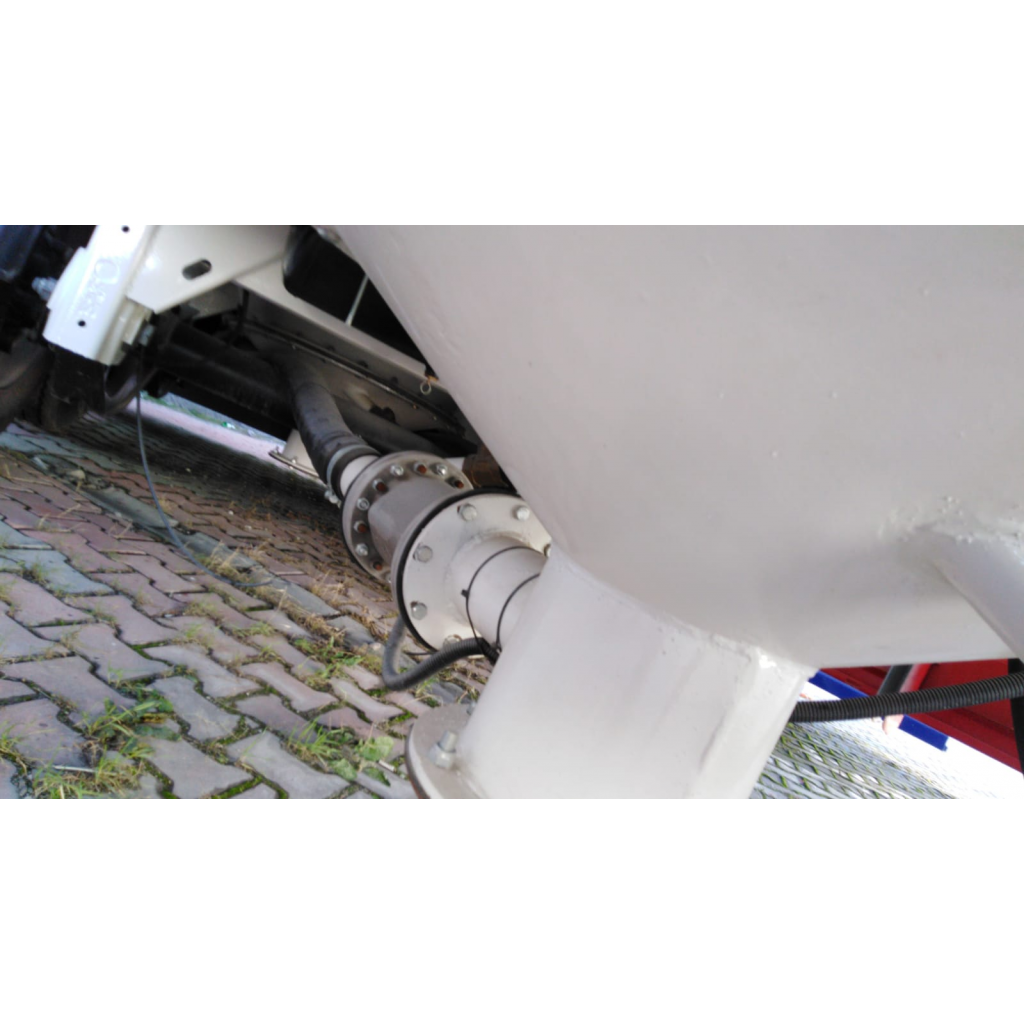

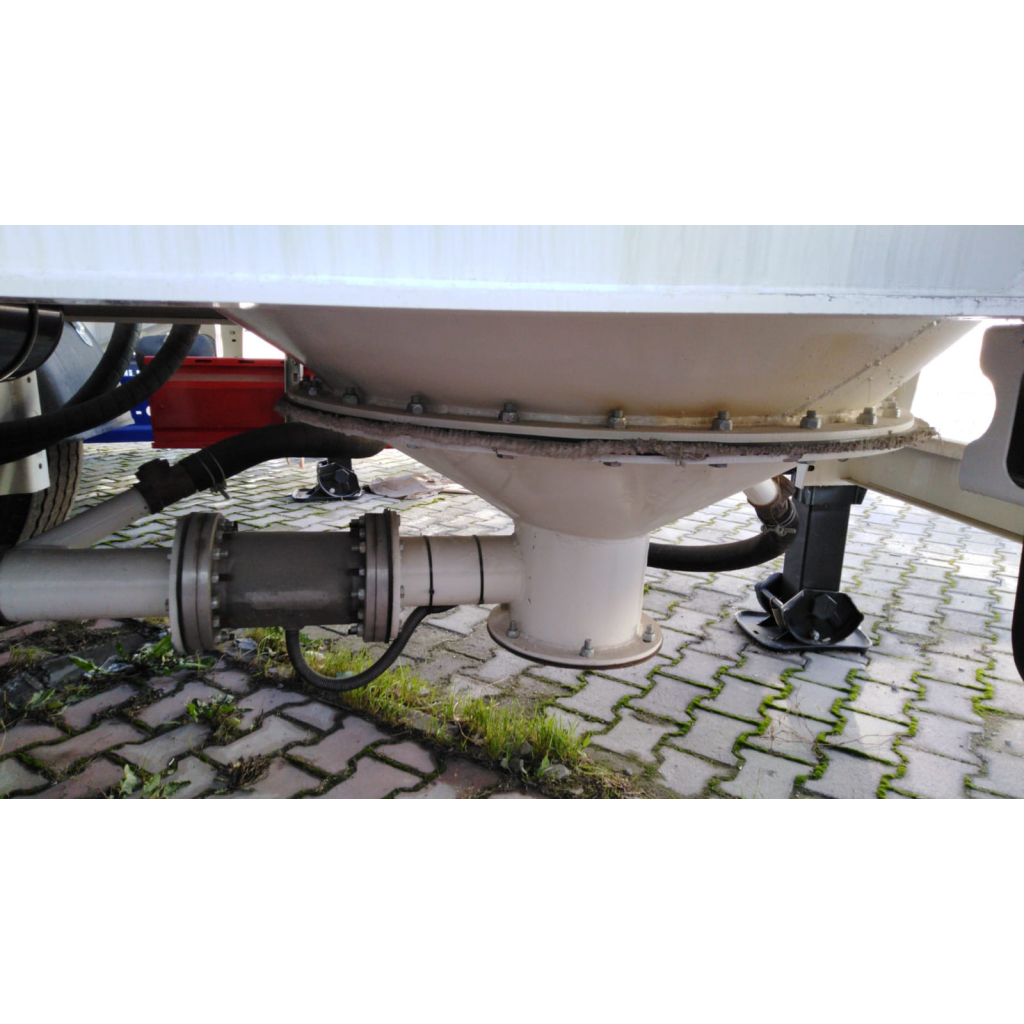

| Tank Equipment : The tank is filled with air in 2 bars. It is discharged from 4” ball | ||
| valve at the ground aith the aid of vibration hoses on the ground. | ||
| Discharcing System : 1.5 m3/min (in the sufficient air pressure | ||
| Safety Valve : It limits the pressure inside of the tank with 2 bars |
